ChemCubed ElectroUV3D-1216
Made in USA

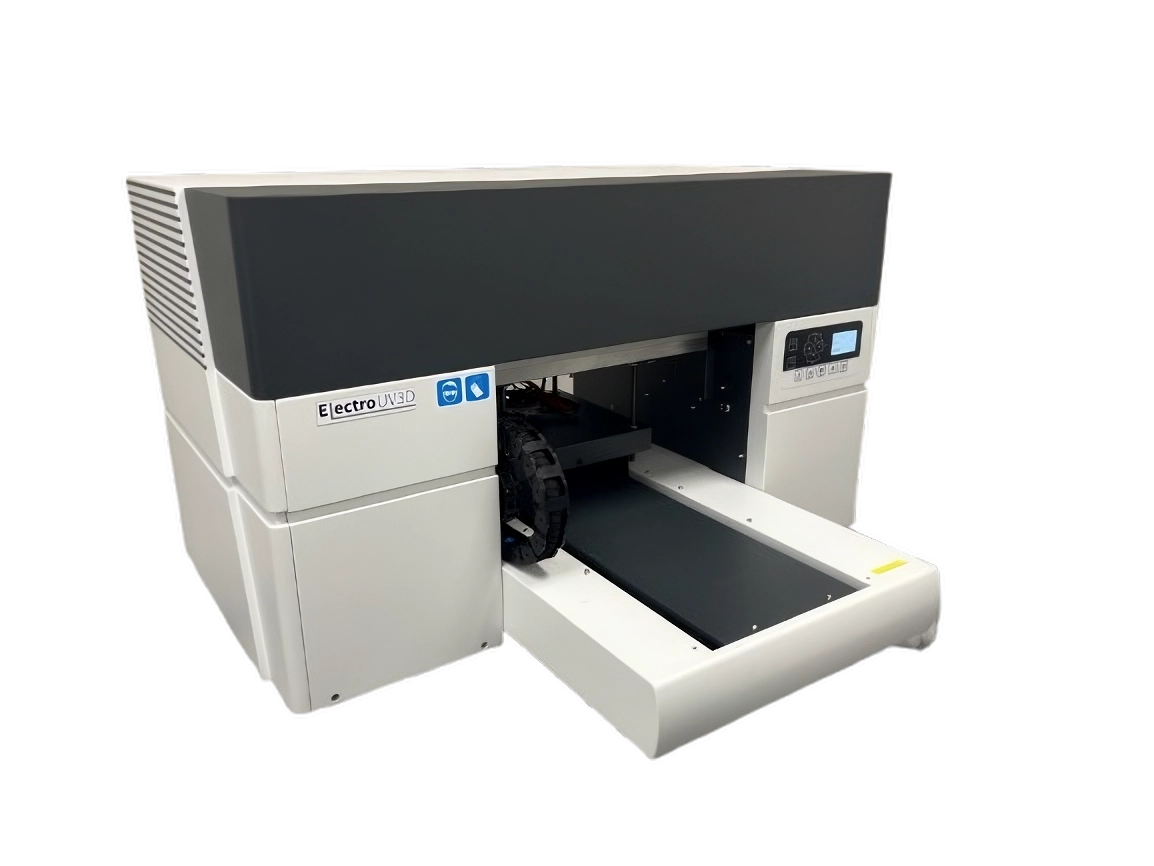

The ElectroUV3D-1216 is a UV LED flatbed tabletop printer providing multi-layer, multi-material electronics printer, perfect for prototyping, custom fabrication, and retrofits.
- ElectroUV3D-1216 printing features :
- Micron-scale conductive trace features
- Trace Gaps : 200µm
- Trace Widths : 100µm
- Templating Stand-Alone Trace Widths : 50µm
- Printing Channels : 5 printing channels (4 dielectric, 1 conductive)
- UV Curing system with Heated Vacuum Suction Platform
- Multi-Material Capabilities
Specifications
Engineered for Prototyping
Compact 12″x16″ flatbed design enables rapid, small-scale production and material testing with full process control and repeatable precision.
Independent Control
Capacity to independently control 3D or flat prints with strong adhesion to multiple substrates.
Exceptional Print Quality
Precision Dot Control™ provides industry- leading print quality with y-axis absolute positioning accuracy and repeatability.
Easy Layering Process
Easy layering process for space-saving on multi-layer components with complete height adjustability, catering to substrates up to 6″.
Multi-Material Capabilities
This system enables the digital printing of silver conductive inks and UV-curable dielectric insulating/building inks. It features inline LED UV curing for dielectric insulating inks and inline heat sintering for silver conductive inks. With a high-resolution and an 6-channel inkjet head, it allows for simultaneous multi-material, multi-layer printing of electronic circuits and components.
